IGBT Power Supplies
High-frequency Switching Power Supply
Indoor DC power supply with voltage and current regulation for copper foil, metal smelting, rare-earth and hydrogen production applications.
- AC input
- 380 V ±10%
- DC voltage
- 6–1,500 V
- DC current
- 0–50 kA
- Switching frequency
- 18 kHz
- Voltage regulation accuracy
- ≤0.5%
- Current regulation accuracy
- ≤0.2%
Share your requirements for a project-specific quotation.
Description
This high-frequency switching power supply provides regulated DC power for copper foil, metal smelting, rare-earth and hydrogen production applications.
The product uses an 18 kHz switching frequency and is described with voltage and current regulation functions. The listed current ripple coefficient applies at a load factor of at least 60%.
The voltage and current ranges describe the product range; the required operating point and equipment configuration are selected for each process. Input supply, cooling requirements and control interfaces are confirmed during project review.
Technical Specifications
- AC input
- 380 V ±10%
- DC voltage
- 6–1,500 V
- DC current
- 0–50 kA
- Switching frequency
- 18 kHz
- Voltage regulation accuracy
- ≤0.5%
- Current regulation accuracy
- ≤0.2%
- Current ripple coefficient
- ≤1% at load factor ≥60%
- Installation
- Indoor

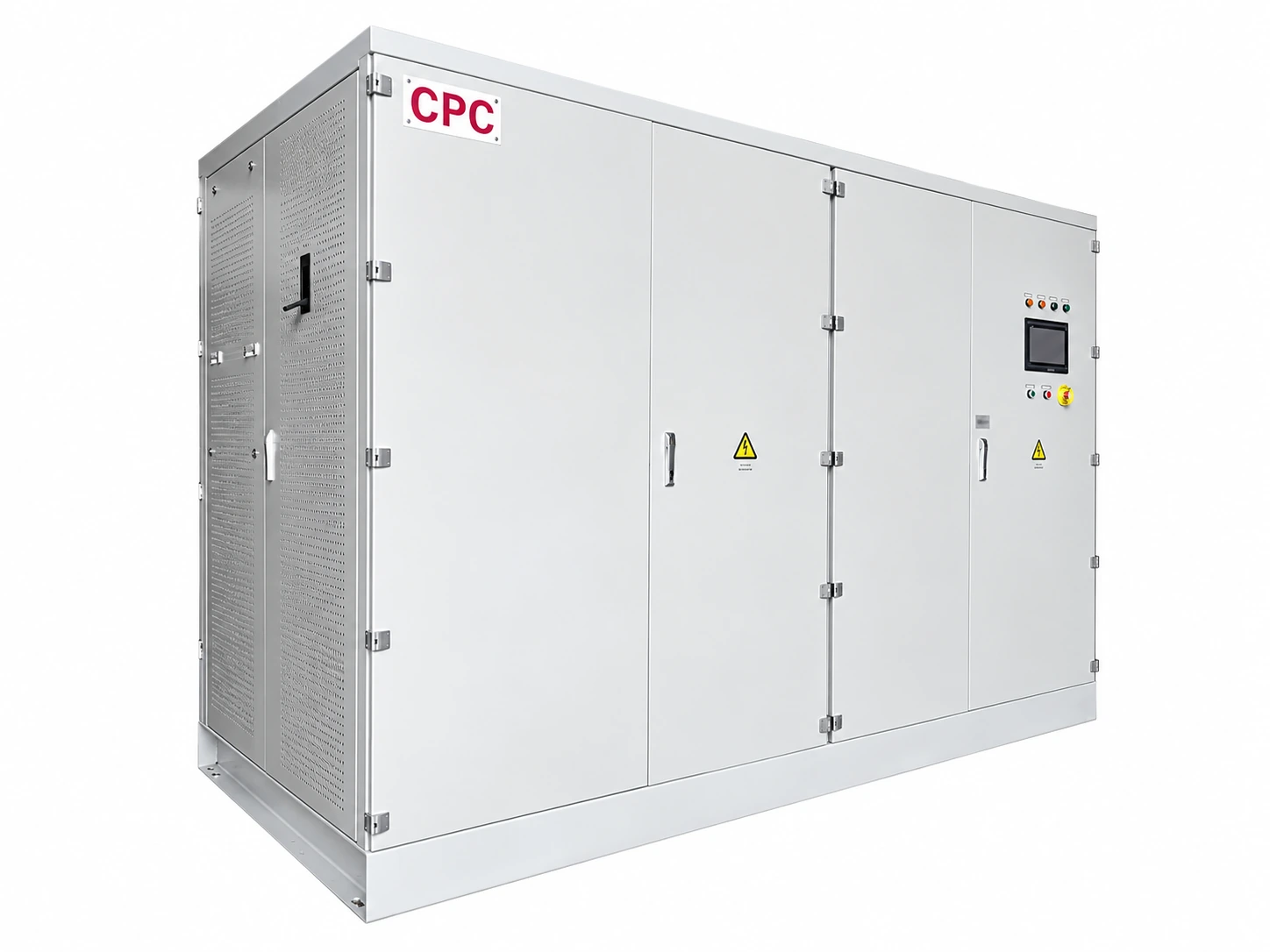

Reference configuration shown. Final electrical ratings, dimensions and equipment configuration are confirmed for each project.
