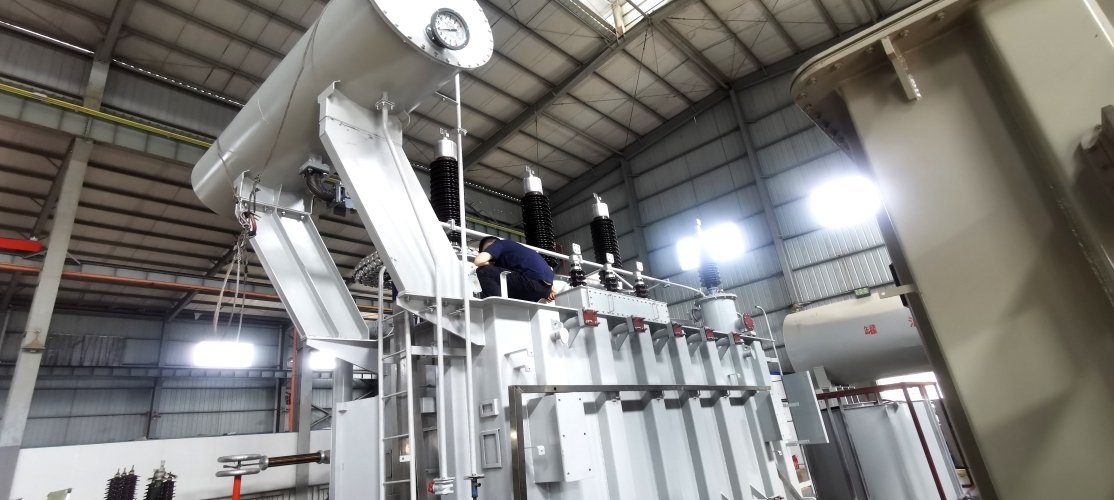

Power Transformer
Power transformers for substations, power plants and industrial facilities, selected according to rated capacity, voltage class, winding arrangement, voltage regulation and cooling requirements.
- Product type
- Power Transformer
- Cooling options
- Oil-immersed air-blast / forced-oil air
- Capacity and voltage
- Confirmed for each project
Share your requirements for a project-specific quotation.
Description
Power transformers provide voltage conversion and power transfer in electrical networks. The brochure emphasizes efficiency, low losses, low noise and reliable operation.
Applications
- Power distribution at substations, power plants and industrial facilities.
- Capacity, voltage ratio, impedance and installation conditions are confirmed for each project.
Model designation guide
- The initial S denotes three-phase construction.
- F: oil-immersed, air-blast cooling; FP: forced-oil, air cooling.
- An S in the winding-arrangement position denotes three windings; interpret it within the complete model designation.
- Z: on-load voltage regulation; no corresponding code is used for de-energized regulation.
- Subsequent fields indicate the performance-level code, rated capacity and voltage class.
Information for selection
- Rated capacity, rated voltages on each side, number of windings, vector group and short-circuit impedance.
- Tap range, cooling method, loss and noise requirements, transportation and installation conditions.
Technical Specifications
- Product type
- Power Transformer
- Cooling options
- Oil-immersed air-blast / forced-oil air
- Capacity and voltage
- Confirmed for each project
Reference configuration shown. Final electrical ratings, dimensions and equipment configuration are confirmed for each project.
