CPC-15 Horizontal Rectifier
Water-cooled rectifier for silicon carbide, carbon and graphitization processes, with a self-supporting structure and separated positive and negative sections.
- Model
- CPC-15
- DC current
- 80 kA
- DC voltage
- 2,000 V
- Rectifier devices
- Diodes or thyristors
- Cooling method
- Water cooling
- Application
- Silicon carbide, carbon, graphitization
Share your requirements for a project-specific quotation.
Description

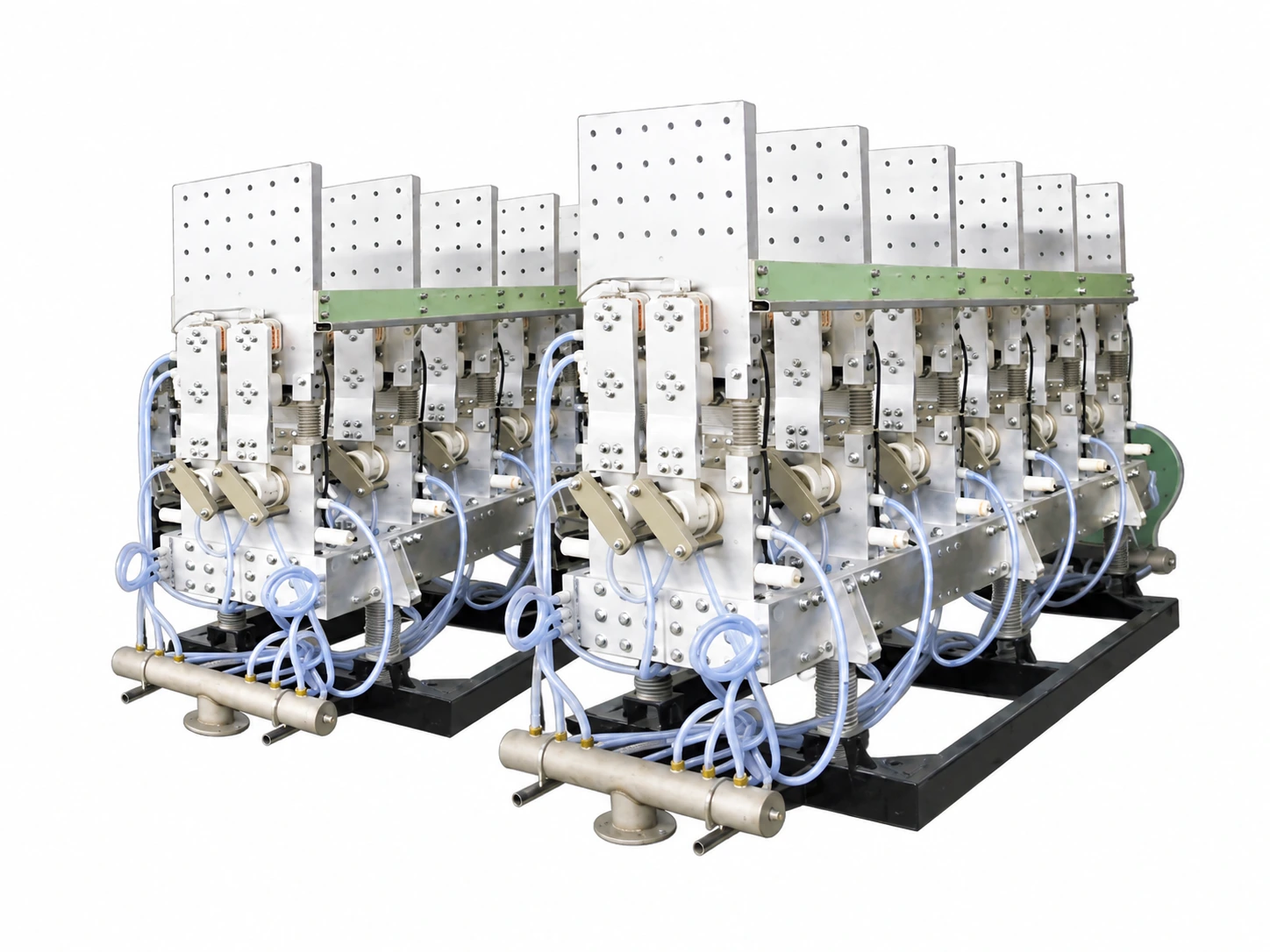

The CPC-15 is a rectifier for silicon carbide, carbon and graphitization applications. The horizontal arrangement shown is designed around high-current, high-voltage process requirements.
Positive and negative sections can be spaced to suit the electrical and installation requirements. Symmetrical component mounting supports uniform clamping pressure and current sharing between parallel branches.

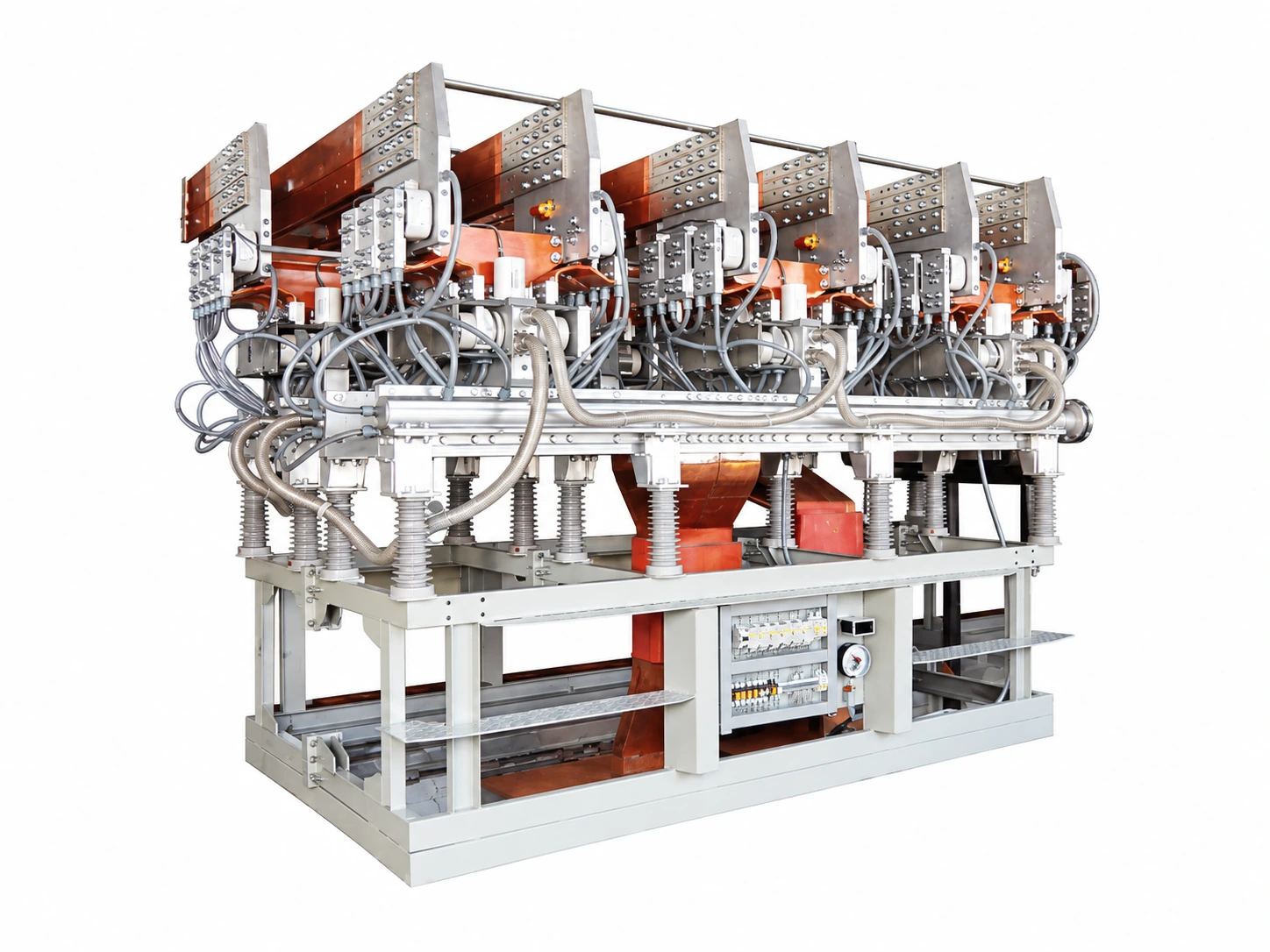

A self-supporting structure provides mechanical support for the rectifier assembly. Separate water circuits for AC components and the positive and negative DC sections help reduce electrochemical corrosion.
The product information also describes vertical arrangements for specific projects. The final layout, transformer interfaces and cooling conditions are confirmed for the installation.
Technical Specifications
- Model
- CPC-15
- DC current
- 80 kA
- DC voltage
- 2,000 V
- Rectifier devices
- Diodes or thyristors
- Cooling method
- Water cooling
- Application
- Silicon carbide, carbon, graphitization
- Structure
- Horizontal, as shown
- Mechanical support
- Self-supporting structure
- Device size
- 4-inch or 5-inch devices
- Circuit configuration
- Three-phase bridge or double-star
- Pulse number
- 6-pulse
- Installation
- Indoor / outdoor
Reference configuration shown. Final electrical ratings, dimensions and equipment configuration are confirmed for each project.
Inquire About This Product
Share your application and electrical requirements to help us prepare a suitable configuration and quotation.
